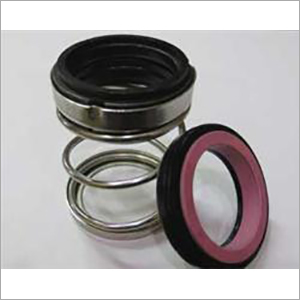

J-2 Mechanical Shaft Seals
1000.00 - 8000.00 INR
Product Details:
- Theory Mechanical Seal, Balanced Type
- Application Water pumps, Oil pumps, Submersible pumps, Compressors
- Hardness 45-60 HRC (Face Material)
- Style Single Acting Mechanical Seal
- Material Carbon, Ceramic, NBR, SS304, SS316
- Temperature -20C to 120C
- Pressure 1.0 MPa (Max)
- Click to View more
X
J-2 Mechanical Shaft Seals Price And Quantity
- 1000.00 - 8000.00 INR
- 200 pcs Piece
J-2 Mechanical Shaft Seals Product Specifications
- 3000 RPM (Max)
- Shaft Diameter 12 mm to 100 mm
- -20C to 120C
- Sealing rotating equipment shafts to prevent leakage
- Single Spring, O-Ring Mounted
- Mechanical Seal, Balanced Type
- Single Acting Mechanical Seal
- Water pumps, Oil pumps, Submersible pumps, Compressors
- 45-60 HRC (Face Material)
- 1.0 MPa (Max)
- Carbon, Ceramic, NBR, SS304, SS316
J-2 Mechanical Shaft Seals Trade Information
- 1000 Piece Per Day
- 2-3 Days
- Yes
- Free samples are available
- All India
Product Description
We are involved in offering a wide range of J-2 Mechanical Shaft Seals to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of J-2 Mechanical Shaft Seals. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
- Sturdy design
- Highly durable
- Application specific design
Key Features and Materials
J-2 Mechanical Shaft Seals stand out for their robust seal faces made from carbon, ceramic, silicon carbide, or tungsten carbide. Secondary seals feature NBR, EPDM, or Viton, coupled with stainless steel (SS304 or SS316) components for long-lasting performance. These seals handle shaft diameters from 12 mm to 100 mm.
Installation and Operation
Installation is straightforward, with a secure set screw and drive ring mount directly on the shaft. Designed for bi-directional rotation and equipped with a single coil spring, the seal maintains shaft runout tolerances and supports static pressures from vacuum to 1.0 MPa for various pump configurations.
Applications and Compatibility
J-2 Shaft Seals are perfect for water, oil, and compressor pumps, especially in demanding conditions involving temperatures from -20C up to 120C. Their replaceability allows interchangeability with prominent pump models, making them ideal for manufacturers and exporters seeking adaptability.
FAQs of J-2 Mechanical Shaft Seals:
Q: How is the J-2 Mechanical Shaft Seal installed on a rotating equipment shaft?
A: The J-2 Mechanical Shaft Seal is mounted directly onto the shaft using a set screw and drive ring, ensuring secure installation and optimal sealing performance. This design simplifies setup, requiring minimal tools and expertise.Q: What materials are used for the seal faces and secondary seals of J-2 Shaft Seals?
A: Seal faces are made from premium carbon, ceramic, silicon carbide, or tungsten carbide for enhanced durability. Secondary sealing options include NBR, EPDM, or Viton elastomers, all supported by stainless steel metal parts (SS304 or SS316).Q: When should I replace a J-2 Mechanical Shaft Seal in my pump system?
A: Replacement is recommended when you observe leakage, excessive vibration, or seal wear. Because the J-2 seal is interchangeable with major pump models, it can be replaced during routine maintenance or when upgrading your equipment.Q: Where can J-2 Mechanical Shaft Seals be used effectively?
A: These seals are suitable for water, oil, and submersible pumps, as well as compressors and equipment operating with water, oil, or mild chemical lubricants. Their versatility extends across industrial, commercial, and submersible applications.Q: What is the maximum operating pressure and speed for these shaft seals?
A: J-2 Mechanical Shaft Seals are designed to function safely at static pressures up to 1.0 MPa and rotational speeds up to 3000 RPM, maintaining robust sealing in demanding operational environments.Q: How does the surface finish Ra 0.1 m on the seal face benefit performance?
A: An ultra-smooth surface finish (Ra 0.1 m) reduces friction, increases sealing efficiency, and extends seal life by minimizing wear and leakage, even in high-speed and high-pressure situations.Q: What advantages does the J-2 Mechanical Shaft Seal offer regarding ease of use and maintenance?
A: The compact design and straightforward mounting process ensure easy installation and replacement. Minimal maintenance requirements support efficient operation and lower downtime, contributing to overall cost savings for manufacturers and operators.Tell us about your requirement
